Product Description
Checchi & Magli Transplanter Smartwolf Compact | Maximum Size 8 cm (3”) | 40-85 HP For Tractors
DESCRIPTION
Versatile Transplanter for Professional Farming

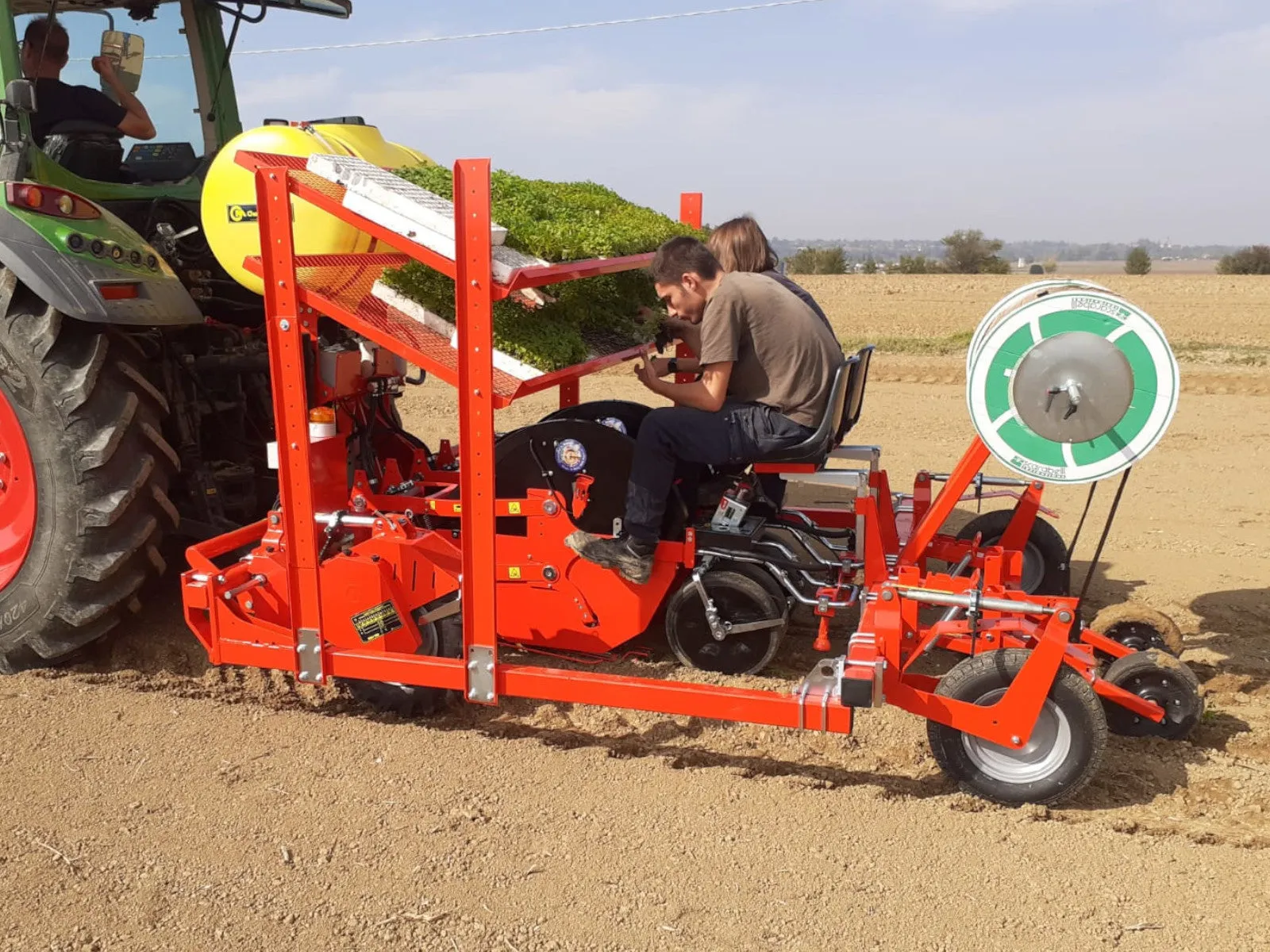

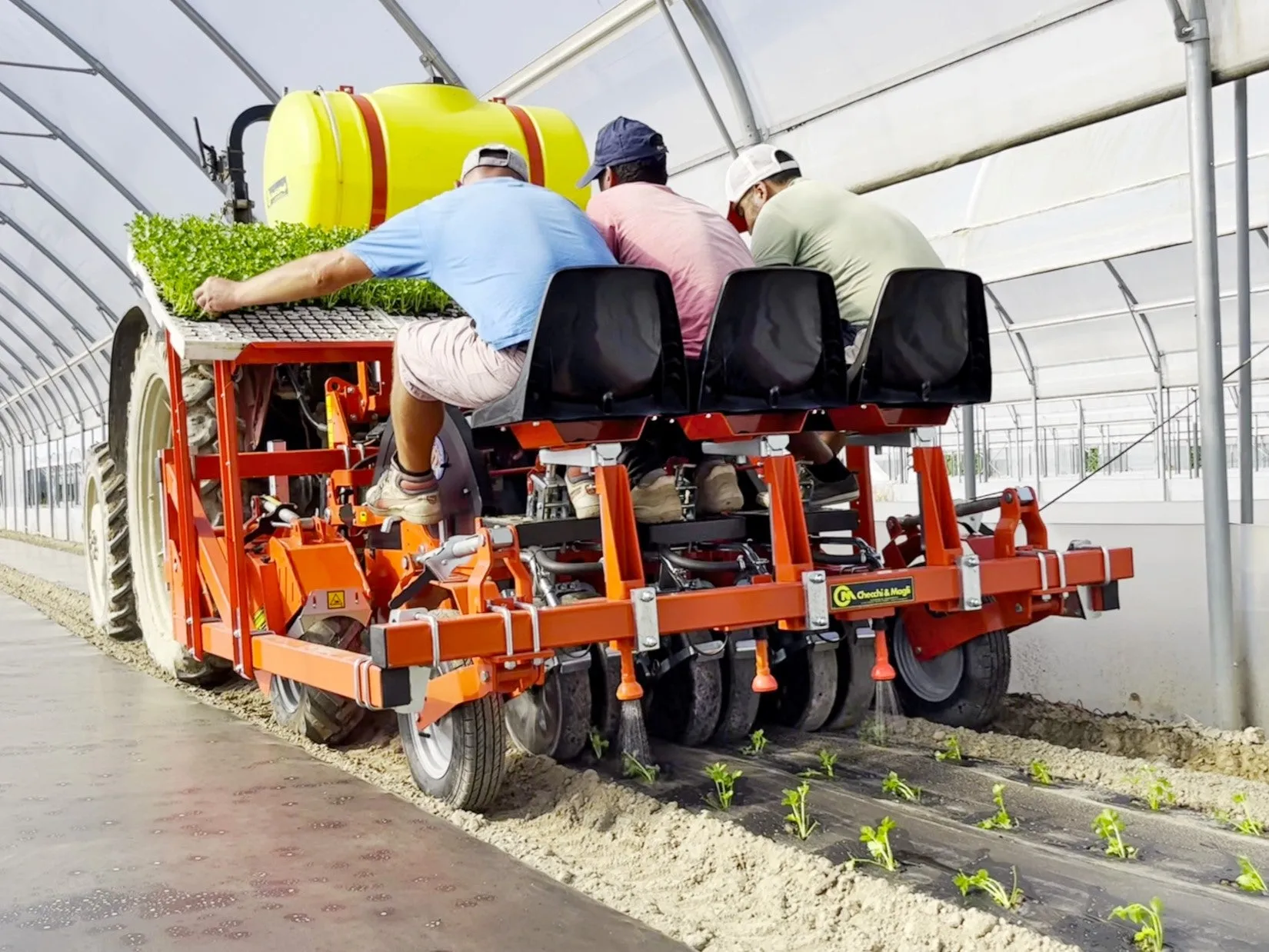

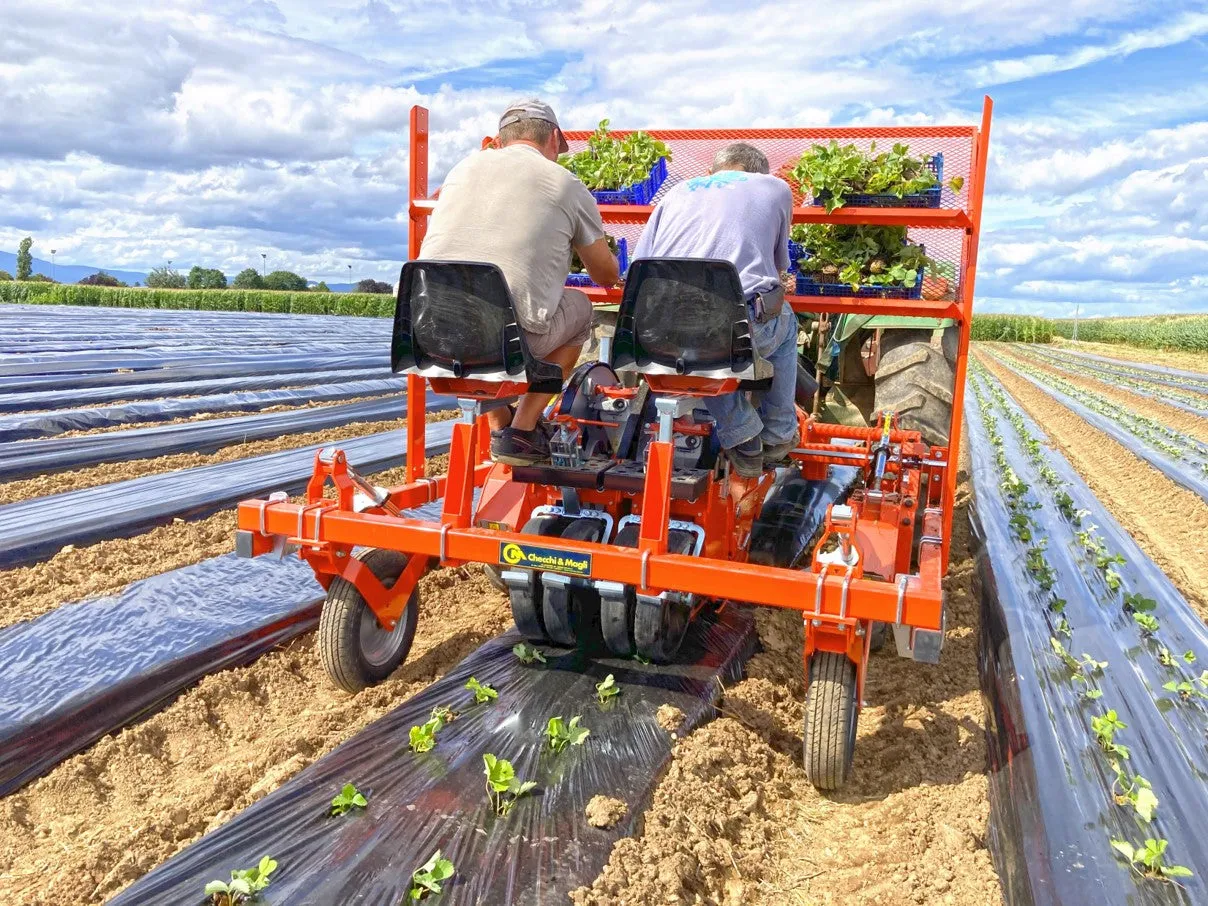

The Checchi & Magli Smartwolf Compact is a professional-grade transplanter designed to handle demanding agricultural tasks with precision and efficiency. Suitable for both bare soil and mulching film operations, including biodegradable options, this machine excels in heavy soils and is capable of transplanting peat clod-rooted conical, pyramidal, or cubic seedlings up to 8 cm (3”) in size.
With its advanced features, including independent and floating transplanting units, a synchronized electric watering device, and adjustable packing wheels, the Smartwolf Compact ensures optimal planting depth and plant health. Capable of a production capacity of up to 3,000 plants per hour per row, this transplanter is ideal for large-scale agricultural operations.
Included Options:
- Tray Holders: Horizontal racks with 2 shelves matching frame width.
- Perforating Cups: STANDARD, LONG, 6x6, 8x8 versions.
- Ploughshares: Multiple sizes for various soil conditions.
- Cutting Discs: Waved or smooth for precise soil preparation.

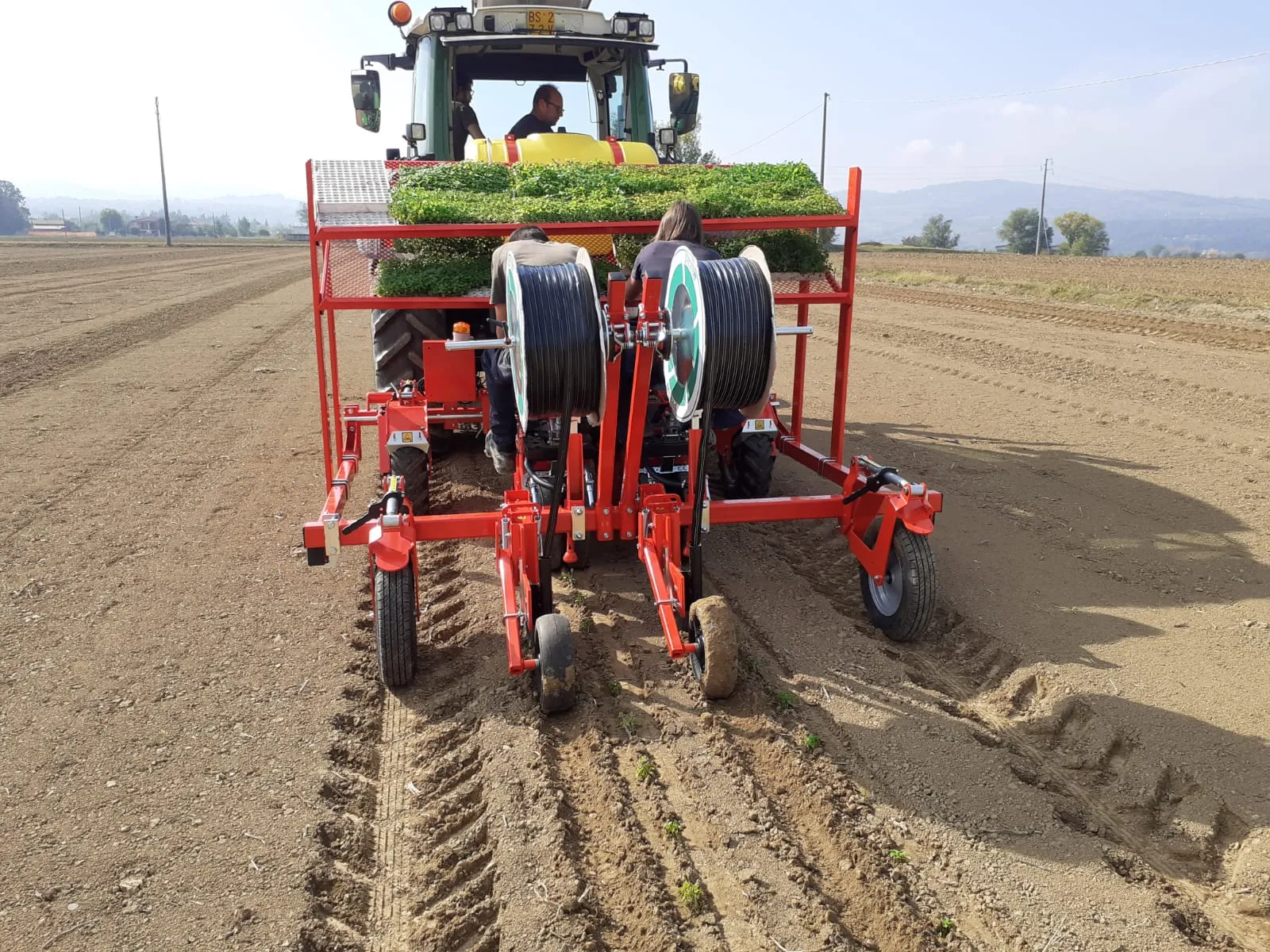

- Drip Tape Dispenser: Surface and sub-surface options for irrigation.
- Row Markers: Manual or hydraulic for accurate row spacing.
Key Features
- Versatility: Transplants conical, pyramidal, or cubic seedlings up to 8 cm (3”).
- Compact and Efficient: Minimum row spacing of 30 cm (12”) for tight planting setups.
- Professional Design: Built to handle heavy soils and challenging conditions.

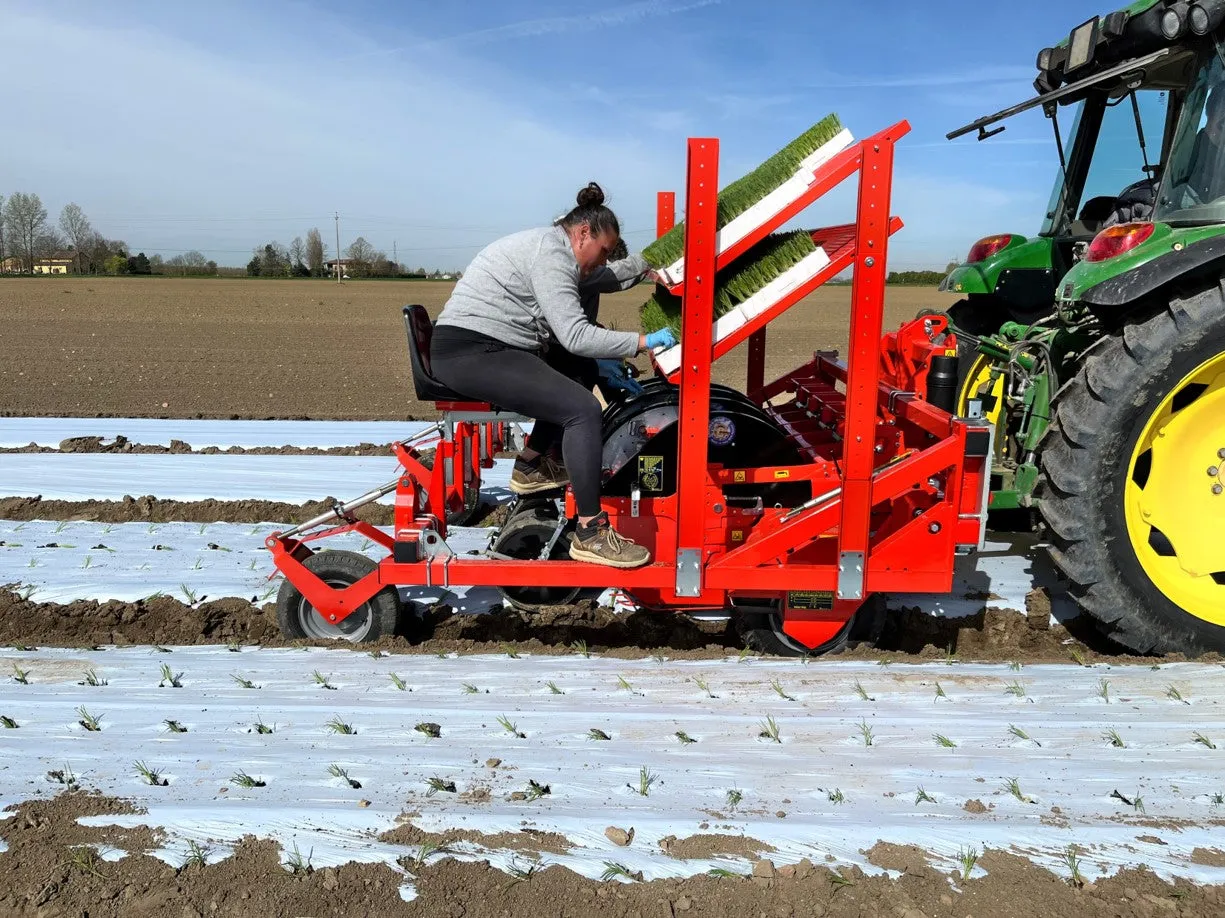

- Mulching Compatibility: Operates seamlessly with both standard and biodegradable mulching films.

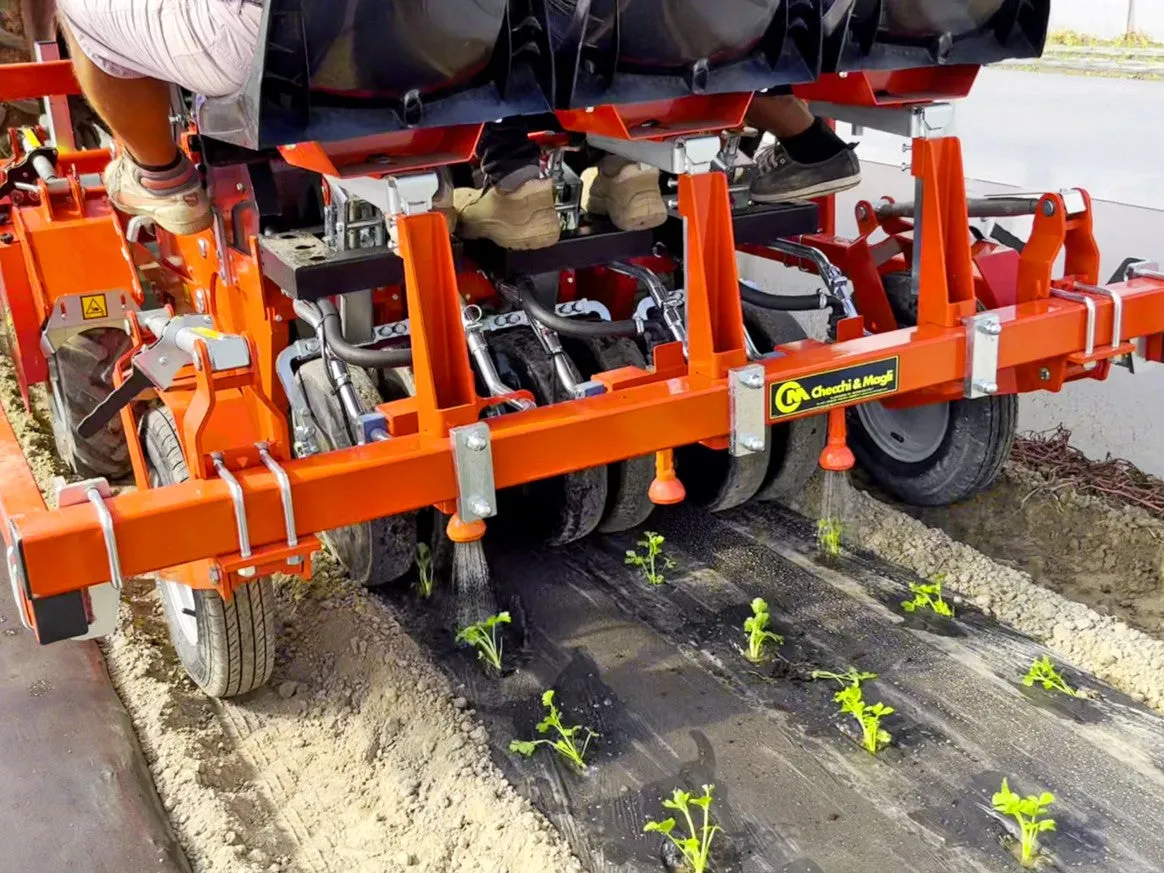

- Advanced Watering System: Synchronized electric watering device for each plant.
- Packing Wheels: Flex rubber wheels with triple regulation for optimal earthing up.
- Soil Adaptation: Features independent floating units, weight-lightening springs, and film pressing slides.
- Automatic Safety Disengagement: Protects mechanical components during operation.
- Mechanical Transmission: Hexagonal bar-driven, no PTO required.
Detailed Specifications
| Feature | Details |
|---|---|
| Seedling Size | Max 8 cm (3”) |
| Row Spacing | Minimum 30 cm (12”) |
| Production Capacity | Up to 3,000 plants/hour/row |
| Planting Cups | STANDARD, LONG, 6x6, 8x8 |
| Transmission | Mechanical with drive wheels |
| Packing Wheels | Flex rubber Ø 330 mm (13”) |
| Frame Configurations | 2 to 6 rows, reinforced frames |
| Configuration | Frame Width (cm) |
|---|---|
| 2 Rows | 200 |
| 3 Rows | 200 (extra) |
| 4 Rows | 250 (extra) |
| 5 Rows | 300 (extra) |
| 6 Rows | 350 (extra) |
In Package:
- Smartwolf Compact Transplanter Unit
- Reinforced frame for selected rows
- Electric watering device (optional)
- User manual for setup and maintenance
